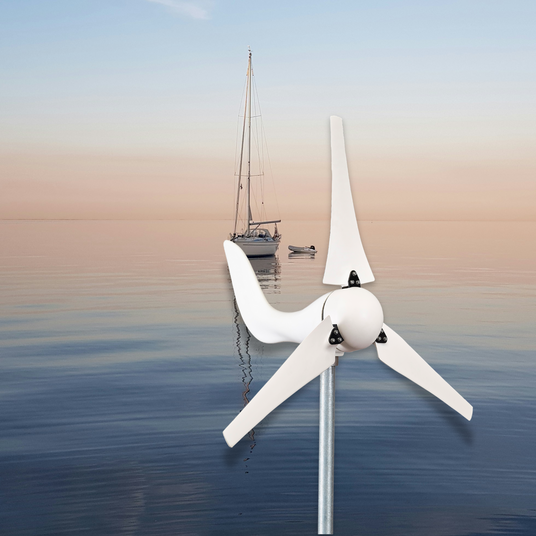

Automaxx Marine 400W Wind Turbine Generator Kit





Read More



SKU: DB0400ABBBM Category: Tag:

Explore The World With Automaxx

Wind Power in the Southern Sea

Marine Approved

✔️ Waterproofing Coating &Strengthened UV Coating Layered
✔️ 400W 12V.
✔️ 6.7mph cut in wind speed.
✔️ 40db noise
✔️ 22lbs
✔️ Made in Taiwan

Effortless and Efficient Generation

Maximum power point tracking (MPPT) system delivers power efficiently to battery, automatically braking turbine during excess voltage or rpm.

Not Even the Sea can Break This Turbine

✔️ Marine-grade Fiberglass infused blades
✔️ 3-phase permanent magnet
✔️ Synchronous AC generator

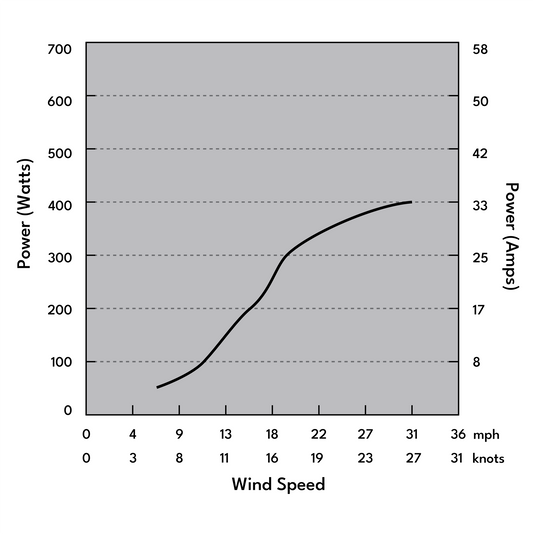

Power Curve Developed Specifically for Marine

✔️ 3m/s cut-in speed means your battery is being charged even when stationary.
✔️ System reaches 80% of full output at just 20 kts.

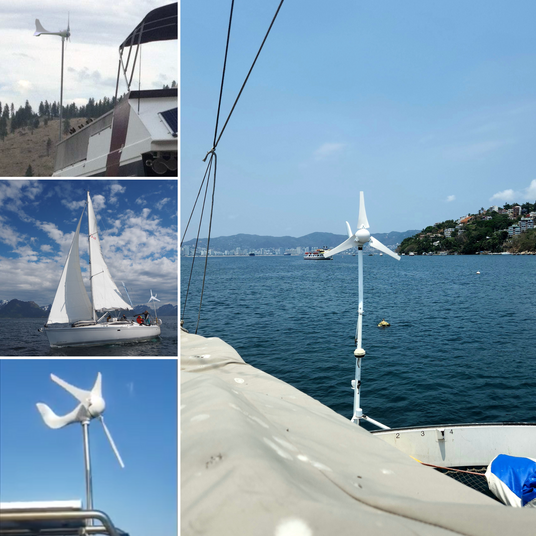

Marine Applications

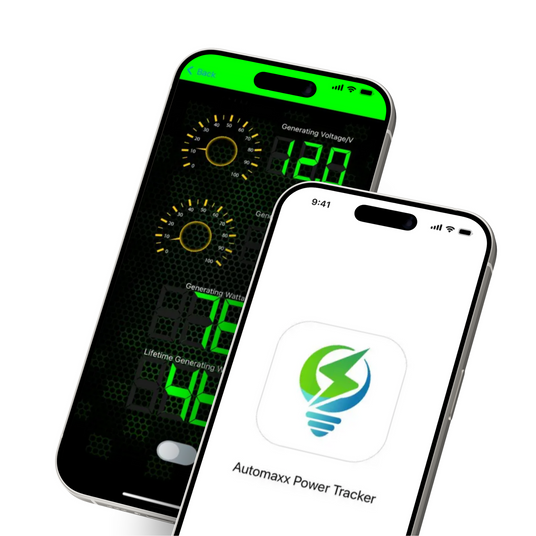

Keep Track of Watt’s Important (Bluetooth version only)

✔️ Free to download (iOS and Android)
✔️ Live Wattage and Amperage readings
✔️ View Total Wattage generated
✔️ Switch control for braking system


Wind Turbine Installation Video

Which windmill is right for you?

AUTOMAXX POWER TRACKER APP (Bluetooth Ver. Only)

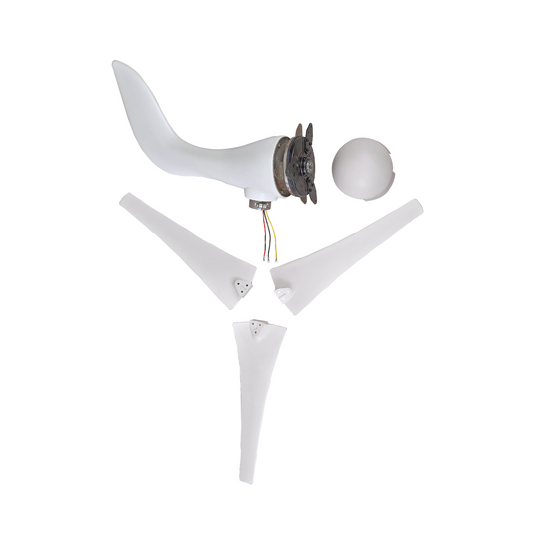

PRODUCTS INCLUDES
1 x Turbine
3 x Blades
3 x Spare Blades
1 x Nose Cone
1 x Spare Nose Cone
1 x Amp Meter
1 x Brake Switch (Manual Stop Switch)
1 x Accessory Pack
SPECIFICATION
Max. Output Power: 400W
Rated Speed: 28 mph/ 12.5 m/s
Diameter of Mounting Hub: 1.9 inches
Generator Type: Permanent Magnet Brushless
Rated Load Current: 25A
Recommended Battery Capacity 100A/hr
Weight: 22 lb
Blade Material: Nylon + Glass Fiber
Output Voltage: 0-15V
Cut-In Wind Speed: 6.7mph / 3m/s
Spinning Diameter: 4ft / 1.22m
Battery Protection Voltage: 14.8V
Charging Efficiency: ≥ 90%6.7mph / 3m/s
Over Speed Braking: ≥ 1200RPM
User Manual: Download PDF
