Explore The World With Automaxx
Wind Power in the Southern Sea
Serious Power. Silent Operation.
Efficient and Safe Generation.
Durable. Quality. Incredible Performance.

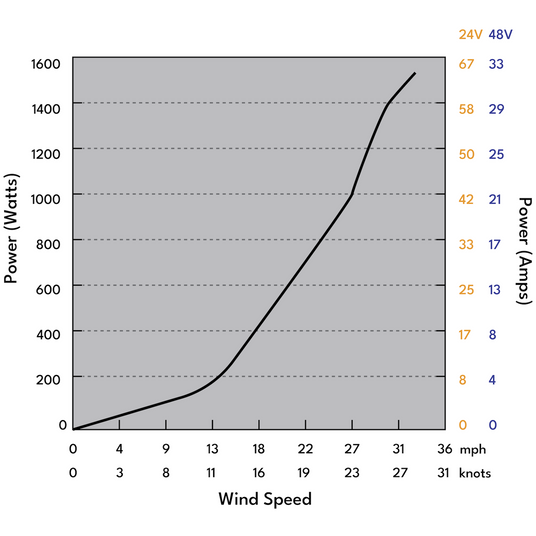

1500W Power Curve

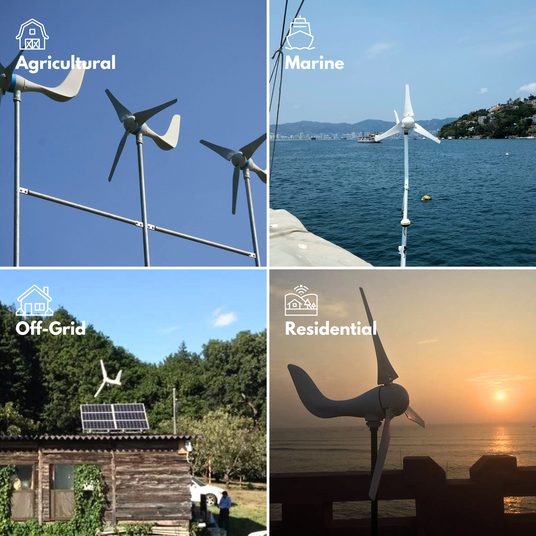

Works in Various Settings
Keep Track of Watt’s Important
Wind Turbine Installation Video
Which windmill is right for you?
AUTOMAXX POWER TRACKER APP (Bluetooth Ver. Only)

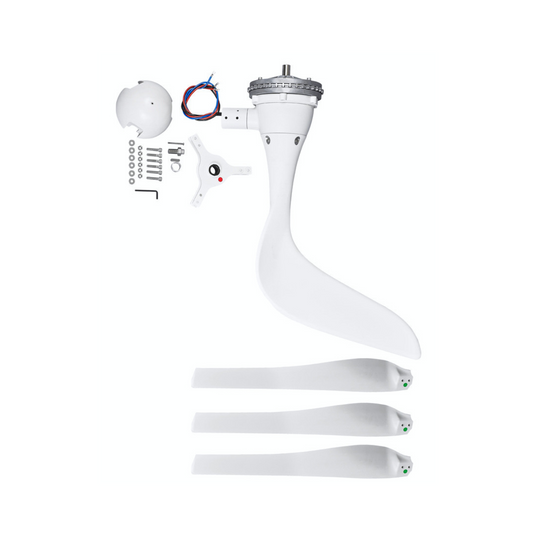

| PRODUCTS INCLUDES |
| 1 x Turbine |
| 3 x Blades |
| 3 x Spare Blades |
| 1 x Nose Cone |

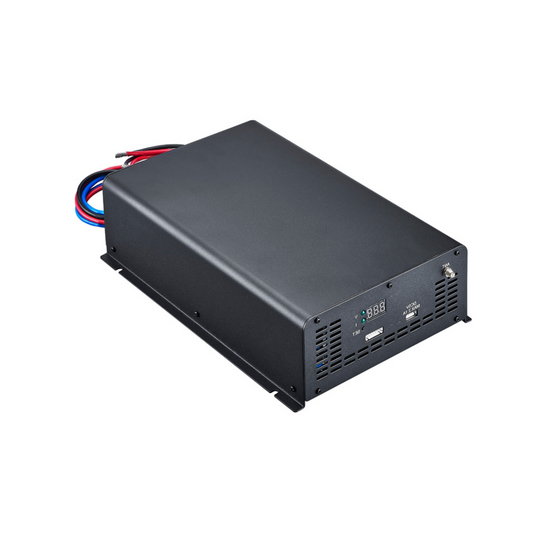

| 1 x MPPT Charge Controller |
| 1 x Hub |
| 1 x Vertical Tail |
| 1 x Brake Switch (Manual Stop Switch) |
| 1 x Accessory Pack |
| SPECIFICATION | |
| Max. Output Power: | 1500W |
| Rated Speed: | 31.3 mph/ 14 m/s |
| Diameter of Mounting Hub: | 1.9 inches |
| Generator Type: | Permanent Magnet Brushless |
| Rated Load Current: | 40A (Max. 45A) |
| Recommended Battery Capacity | ≥ 200A/ hr |
| Weight: | |
| Blade Material: | Glass Fiber + Polypropylene |
| Output Voltage: | 24V / 48V |
| Cut-In Wind Speed: | 5.59 mph/ 2.5 m/s |
| Spinning Diameter: | 5.58ft / 1.7m |
| Battery Protection Voltage: | 28.8 ± 2VDC (24V) | 56.0 ± 6VDC (48V) |
| Charging Efficiency: | 95% |
| Over Speed Braking: | ≥ 1400 RPM |
| User Manual: | Download PDF |
