Explore The World With Automaxx
Wind Power in the Southern Sea
Powerful. Adaptable. Silent
Efficient and Safe Generation
Durable Quality. Incredible Performance.

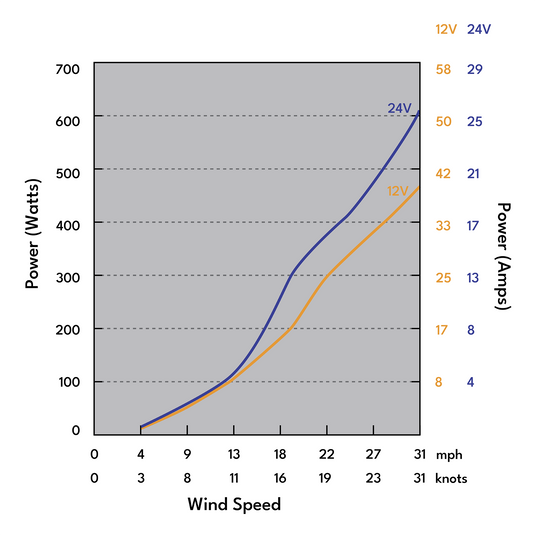

600W Power Curve
Works in Various Settings
Keep Track of Watt’s Important (Bluetooth version only)
Wind Turbine Installation Video
Which windmill is right for you?
AUTOMAXX POWER TRACKER APP (Bluetooth Ver. Only)

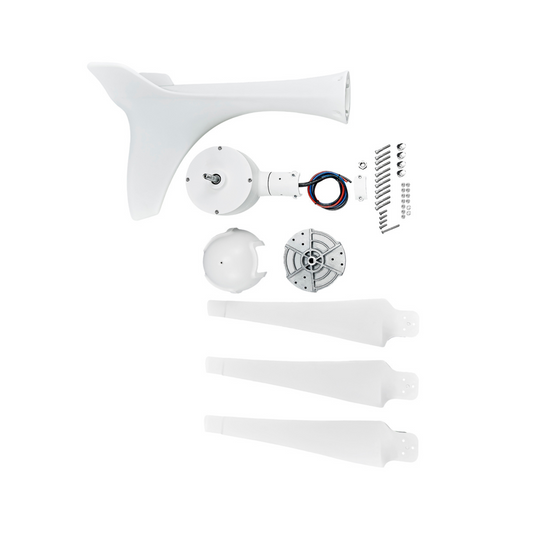

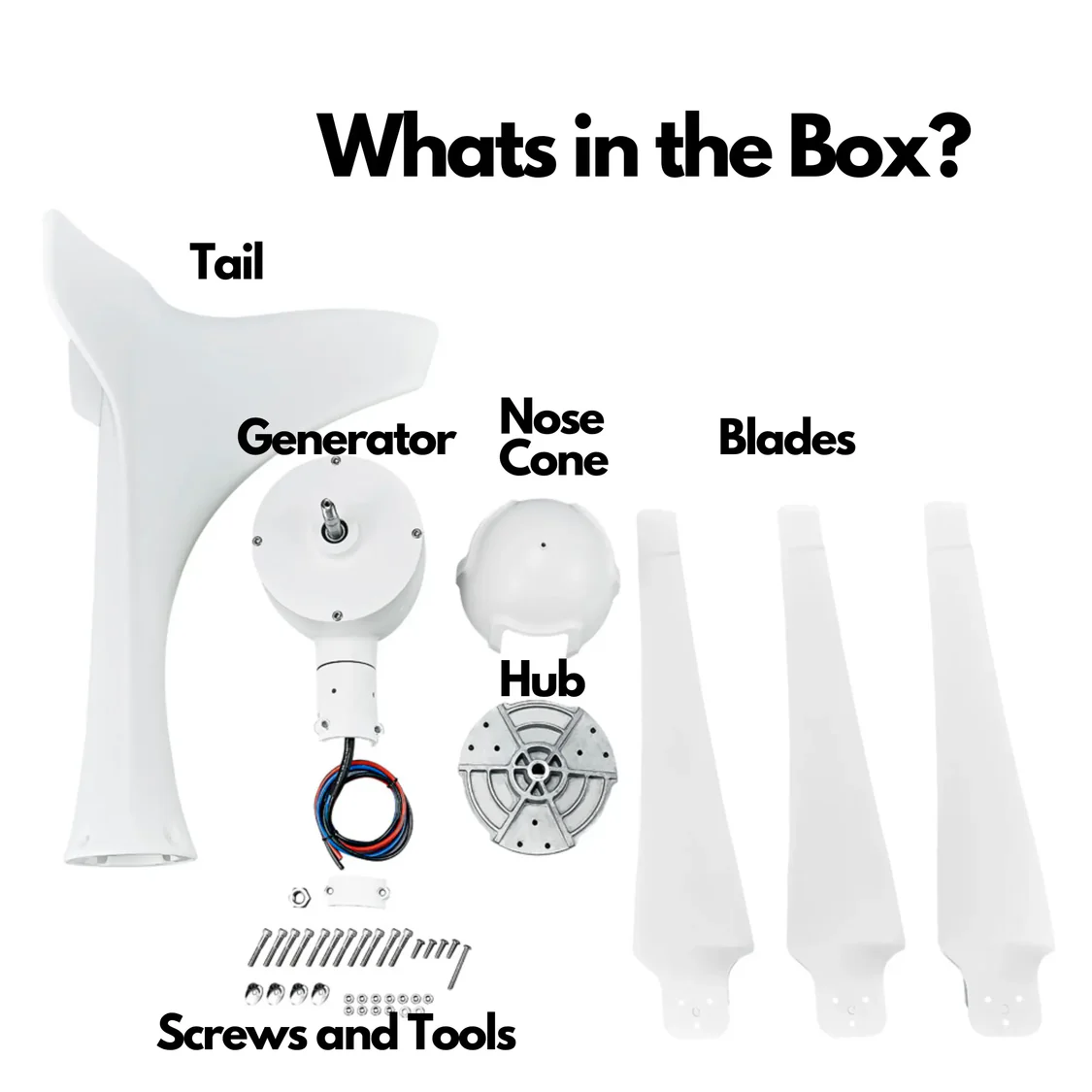

| PRODUCTS INCLUDES |
| 1 x Turbine |
| 3 x Blades |
| 3 x Spare Blades |
| 1 x Nose Cone |
| 1 x MPPT Charge Controller1 |
| 1 x Hub |
| 1 x Vertical Tail |
| 1 x Brake Switch (Manual Stop Switch) |
| 1 x Accessory PackAccessory Pack |
| SPECIFICATION | |
| Max. Output Power: | 600W |
| Rated Speed: | 28 mph/ 12.5 m/s |
| Diameter of Mounting Hub: | 1.9 inches |
| Generator Type: | Permanent Magnet Brushless |
| Rated Load Current: | 30A (Max 35A) |
| Recommended Battery Capacity | ≥ 100A/ Hr |
| Weight: | |
| Blade Material: | Nylon + Glass Fiber |
| Output Voltage: | 12V / 24V |
| Cut-In Wind Speed: | 4.47 mph / 2m/s |
| Spinning Diameter: | 4.4ft / 1.35m |
| Battery Protection Voltage: | 14.7V |
| Charging Efficiency: | 90% |
| Over Speed Braking: | ≥ 1250 RPM |
| User Manual: | Download PDF |
